OPTICAL
• Light source: 25w RGBALC (6 in 1) * 14 LED
• Expected average lifetime: 50000 hours
• Angle: 20°
• CRI: Ra≥90
COLOR
• RGBALC linear mixed color, built-in macro function
ELECTRICAL
• Power input: AC 100-240V 50/60Hz
• Max Power: 265W
• AC power: 3 pin waterproof plugs (in/out)
• DMX data input/output: 3 pin XLR
CONTROL/PROGRAMMING
• Control channels (DMX): 6/11/18
• Protocol: DMX-512; RDM
• Display: OLED
DYNAMIC EFFECTS
• Strobe: 1-25Hz, synchronized, pulse effects
• Dimmer: 0-100% electronic linear dimming
PHYSICAL / INSTALLATION
• Weight: 7.5 kg
• IP rating: IP67
OTHERS
• Sleep Mode: When signal cable disconnected, the lamp will enter sleep mode automatically
• Transmission: DMX wired, fast and convenient software upgrade via DMX data cable
• Cooling System: intelligent cooling system and temperature monitoring system, automatically adjust the cooling system, effectively control the temperature of the lamp
Technical Specification

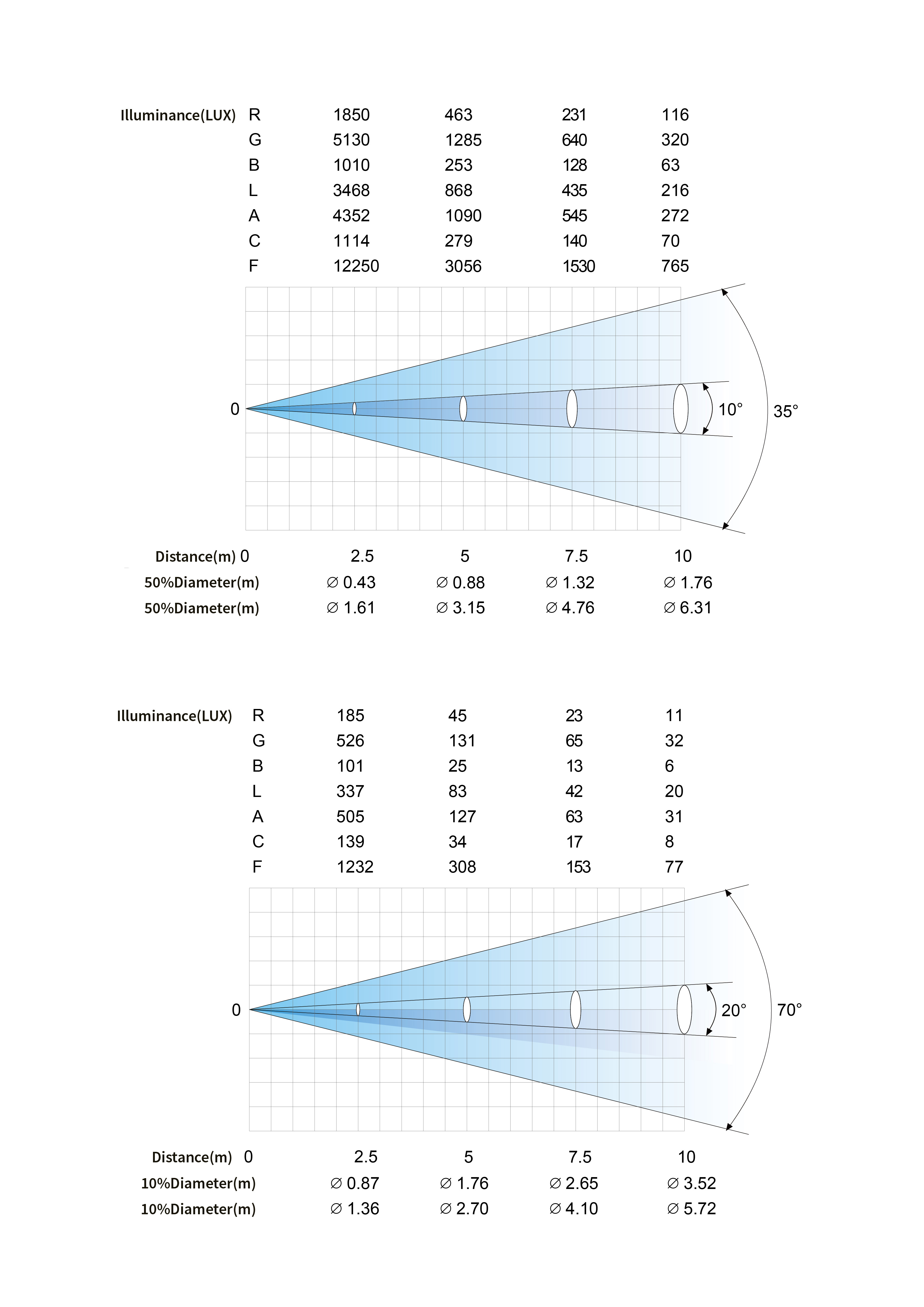

Photometric Diagram
Gobos & Colours

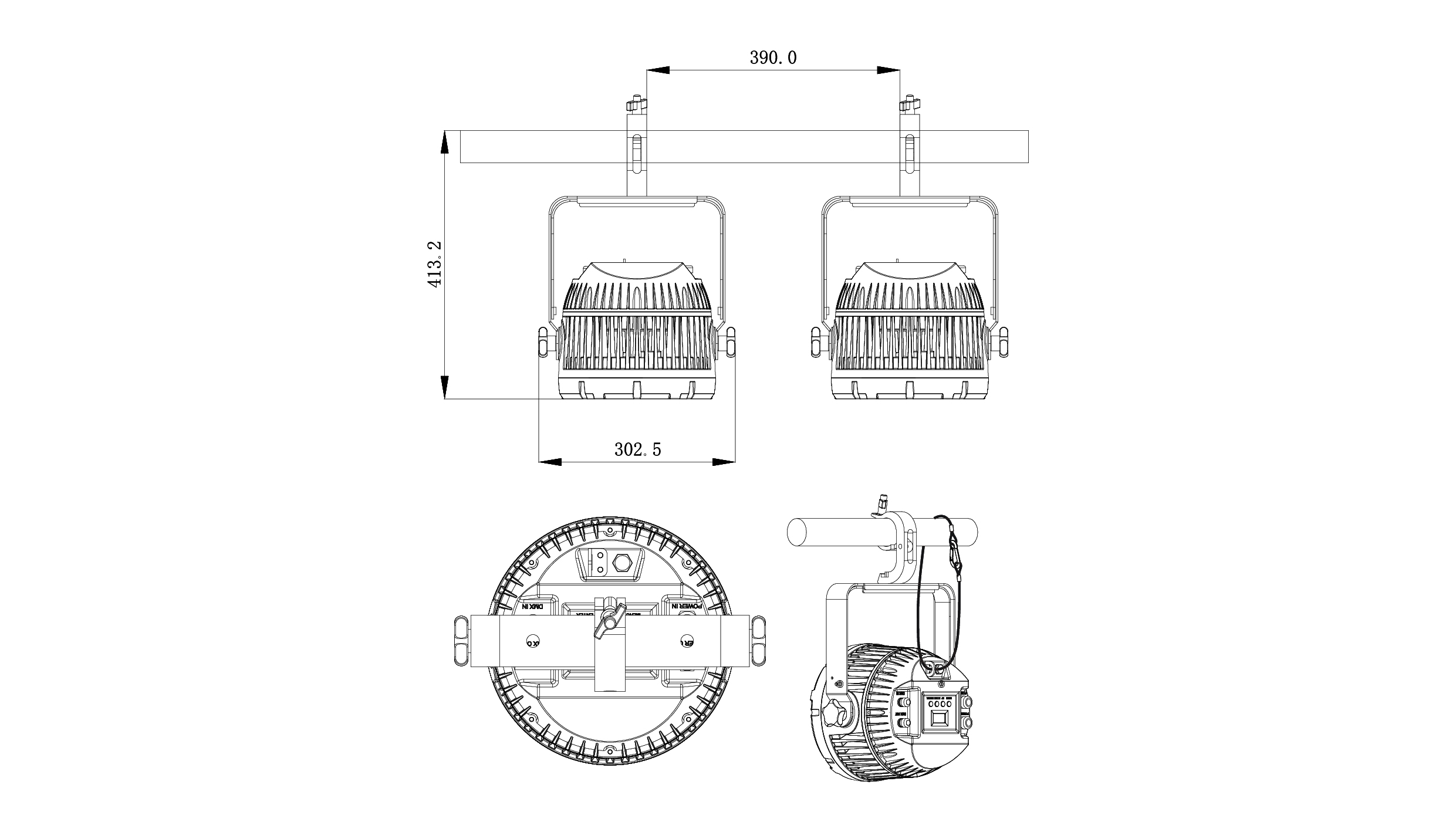

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-LZ2514P
