OPTICAL
• Light source: 60W RGBL * 19pcs
• Expected life: 20,000 hours
• Noise: low noise mode is 35 dB
• Color temperature: 3,200K-7,200K linear adjustment
• Zoom:9°-55° linear adjustment
COLOR
• RGBL linear color mixing, pixel control, color chasing, multiple colorful effects, etc.
ELECTRICAL
• Power input: AC 100-240V, 50/60Hz
• Max power: 1400W
• DMX data in/out: Waterproof 3-pin Seetronic XLR
CONTROL/PROGRAMMING
• Protocol: DMX 512, RDM
• Display: LCD back-lit
DYNAMIC EFFECTS
• Pan/Tilt: Pan 540°, Tilt 230°, 16-bit control and automatic return correction
• Strobe: 1-25Hz, synchronized and asynchronous, pulse effects
• Dimmer: 0-100% electronic linear dimming
PHYSICAL
• Weight: 24kg
• IP rating: IP66
OTHERS
• Automatic energy-saving: Intelligent energy-saving system with timely reduction of light source power
• Power setting: Internal battery, able to control the LCD display without power connection
• Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
• Transmission: DMX signal, update software by DMX
• Cooling: Copper tube + Active fan
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

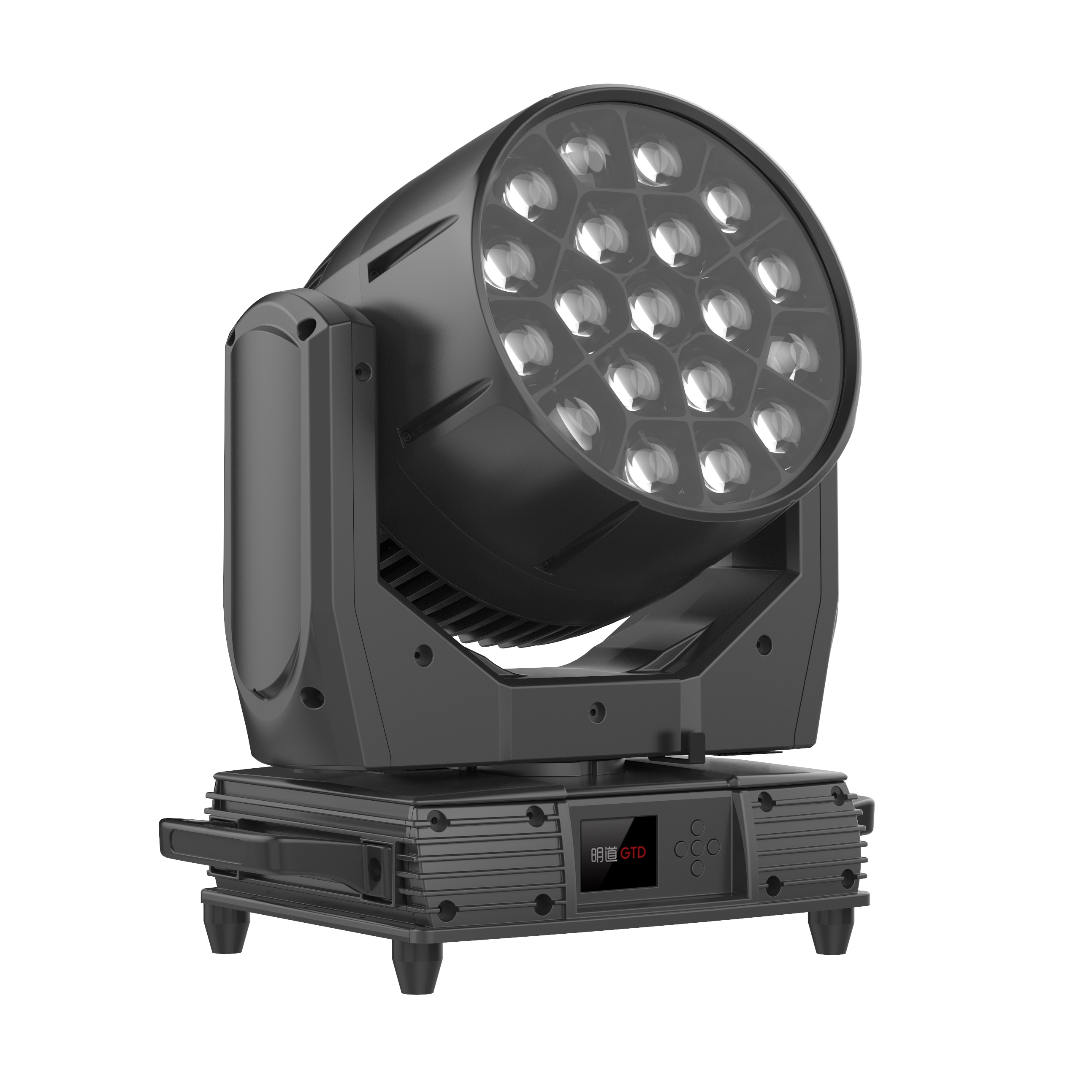

GTD-6019 II PIXIE
