OPTICAL
• Light Source: 260W Laser Module
• Expected life: 20,000 hours
• Color temperature: 7000K
• Focus: High-precision glass lens, electronic linear HD focus
• Zoom: Beam 0.8°
GOBO
• Static gobo: 23 static gobos, variable speed, CW/CCW rotation
COLOR
• CMY linear infinity color mixing, macros
• CTO linear adjustment: 7000K-3200K
• Color wheel: 2 wheels with 16 colors, split color and linear control, CW/CCW rainbow effect
ELECTRICAL
• Input: AC 100V-240V 50/60Hz
• Power supply unit: IP67 socket
• DMX data in/out: IP67 3-pin Seetronic XLR
CONTROL/PROGRAMMING
• Protocol: DMX512, RDM
• Display: LCD
DYNAMIC EFFECTS
• Pan/tilt: Continuous pan and tilt rotation, automatic return correction and 16-bit fine tuning control
• Strobe: 1-25Hz fast strobe with pulse, synchronized and asynchronous effects
• Dimmer: 0-100% linear electronic dimming
• Prism: 2 prisms with bi-directional variable speed rotation
• Frost: 1 frost plate, 0-100% linear softy adjustment
PHYSICAL
• Weight: 20kg
• IP rating: IP66
OTHERS
• Sleep Mode: When disconnect DMX, the fixture returns to sleep mode automatically
• Transmission: Supports wired and wireless DMX transmission, with easy and fast software upgrade via DMX data cable.
• Cooling System: Copper heat-pipe + fan design with intelligent temperature monitoring for automatic thermal regulation, effectively control fixture temperature.
Technical Specification

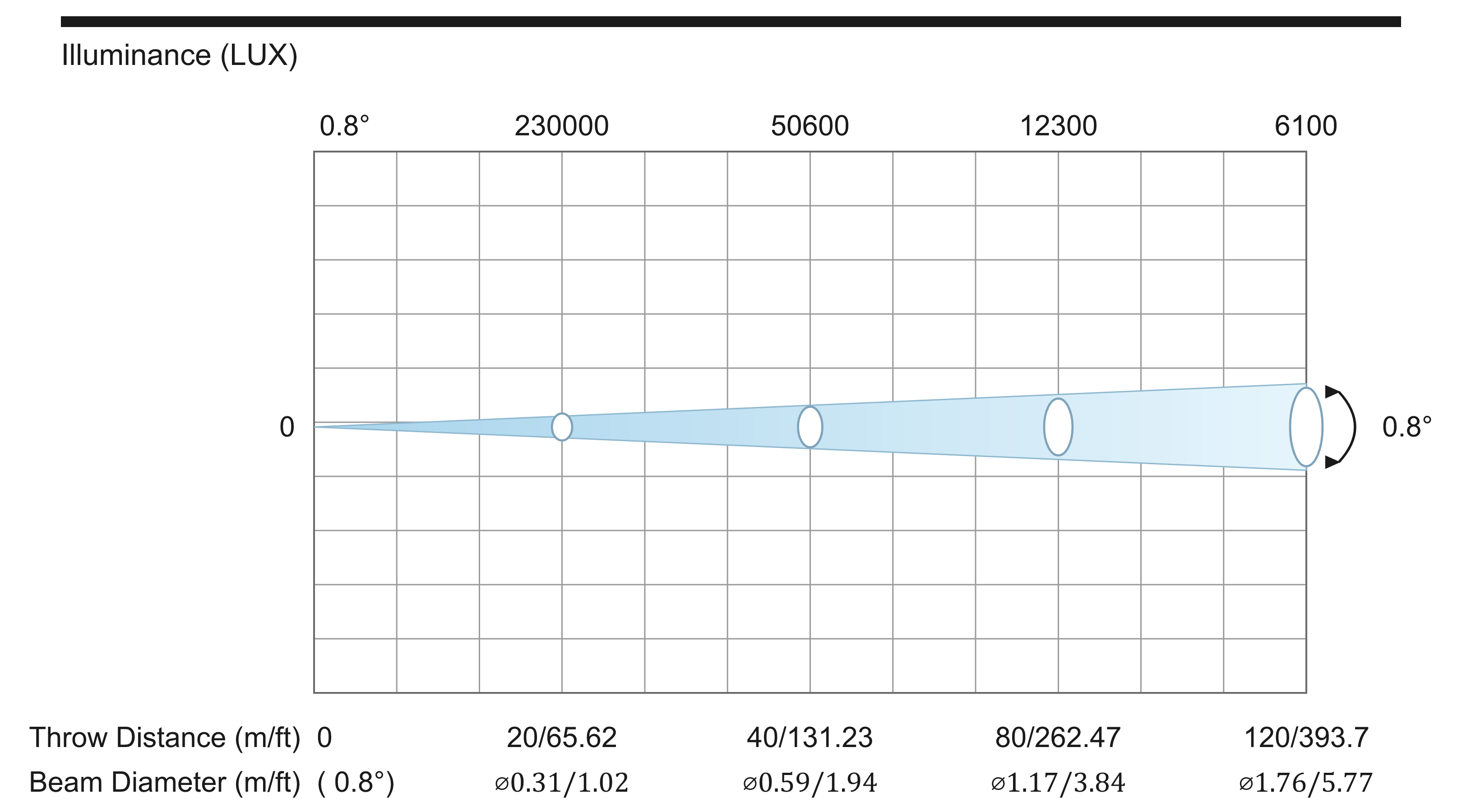

Photometric Diagram

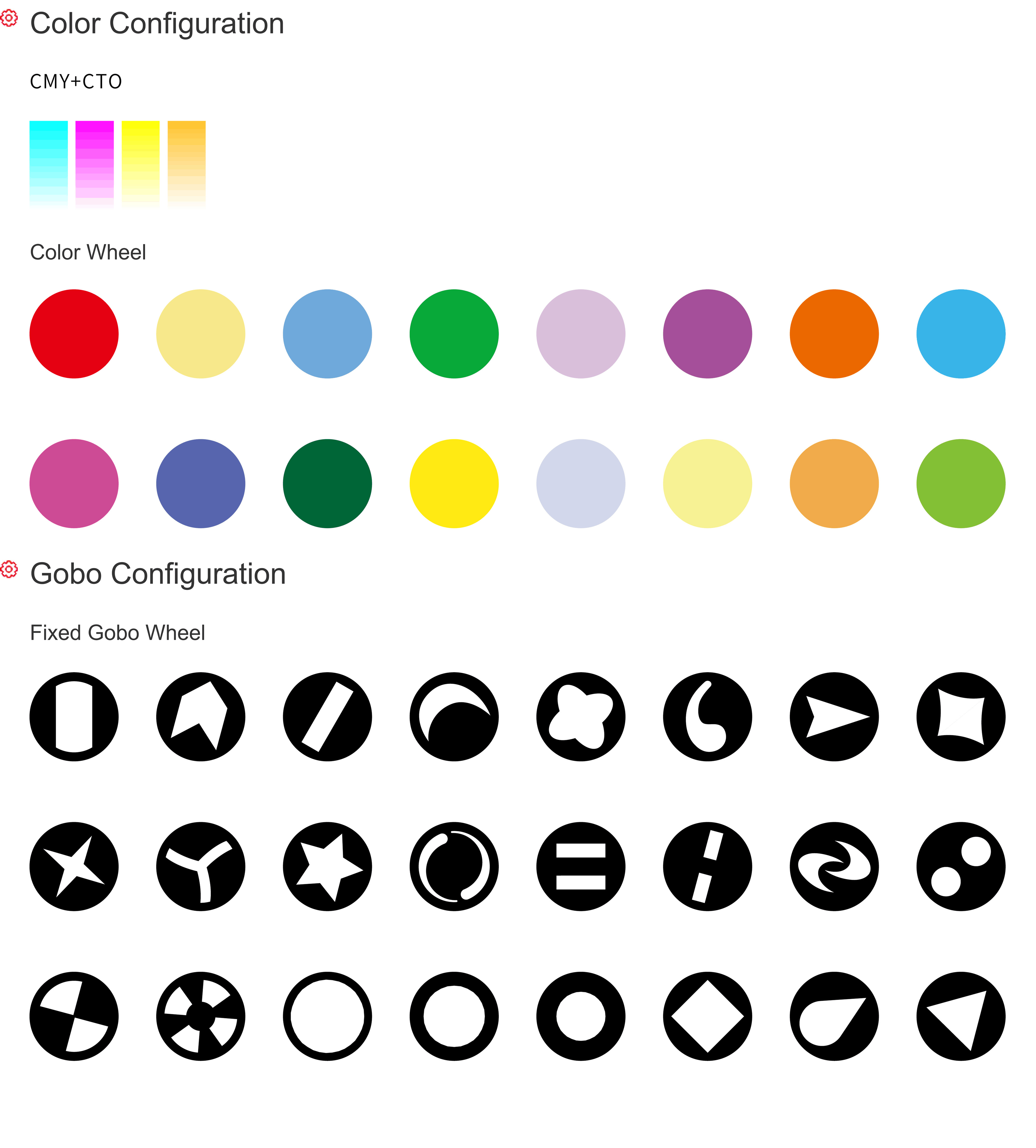

Gobos & Colours

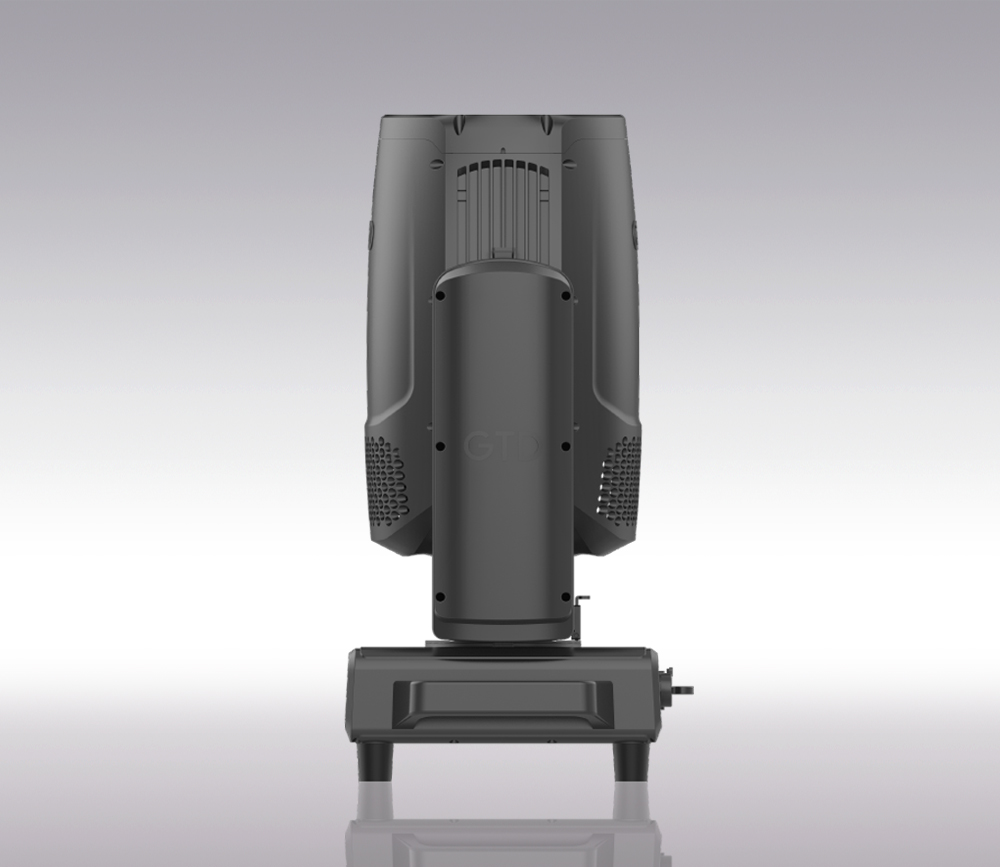

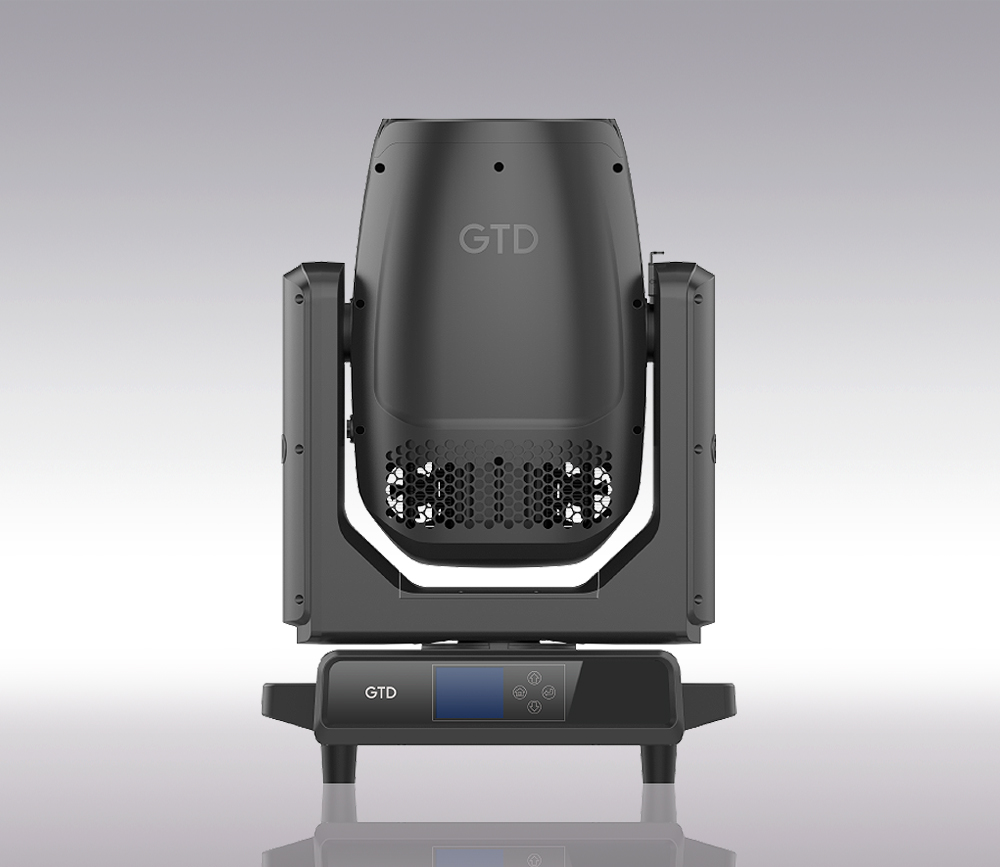

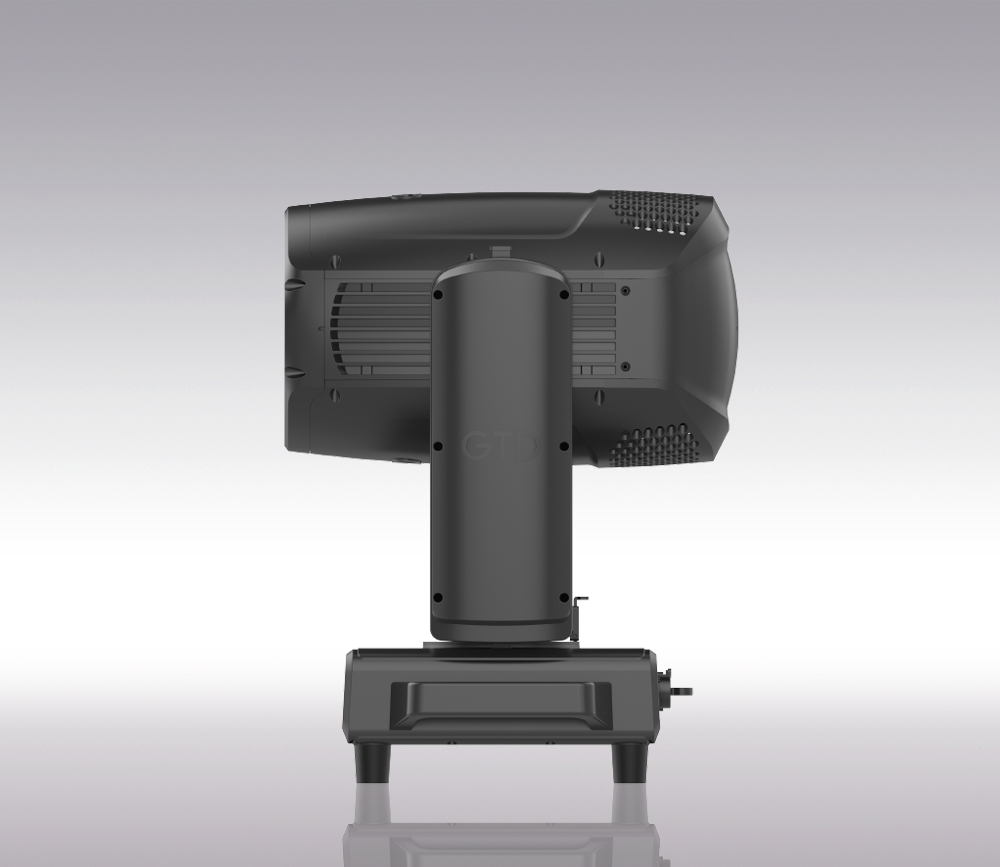

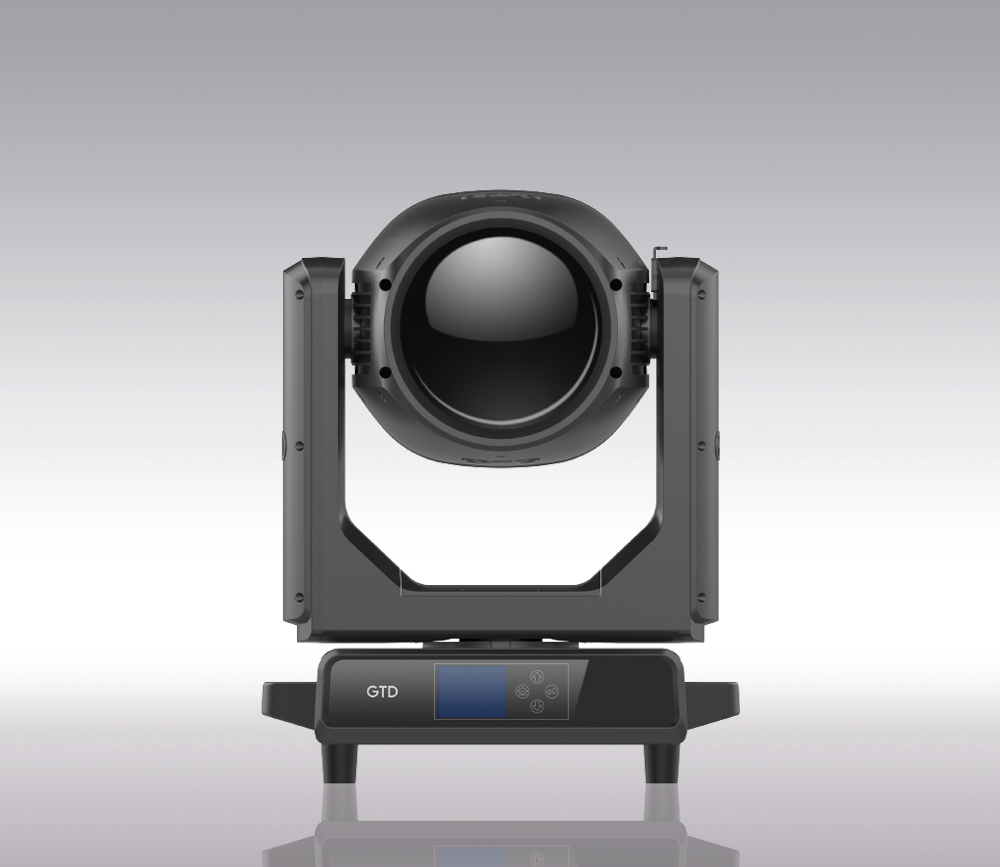

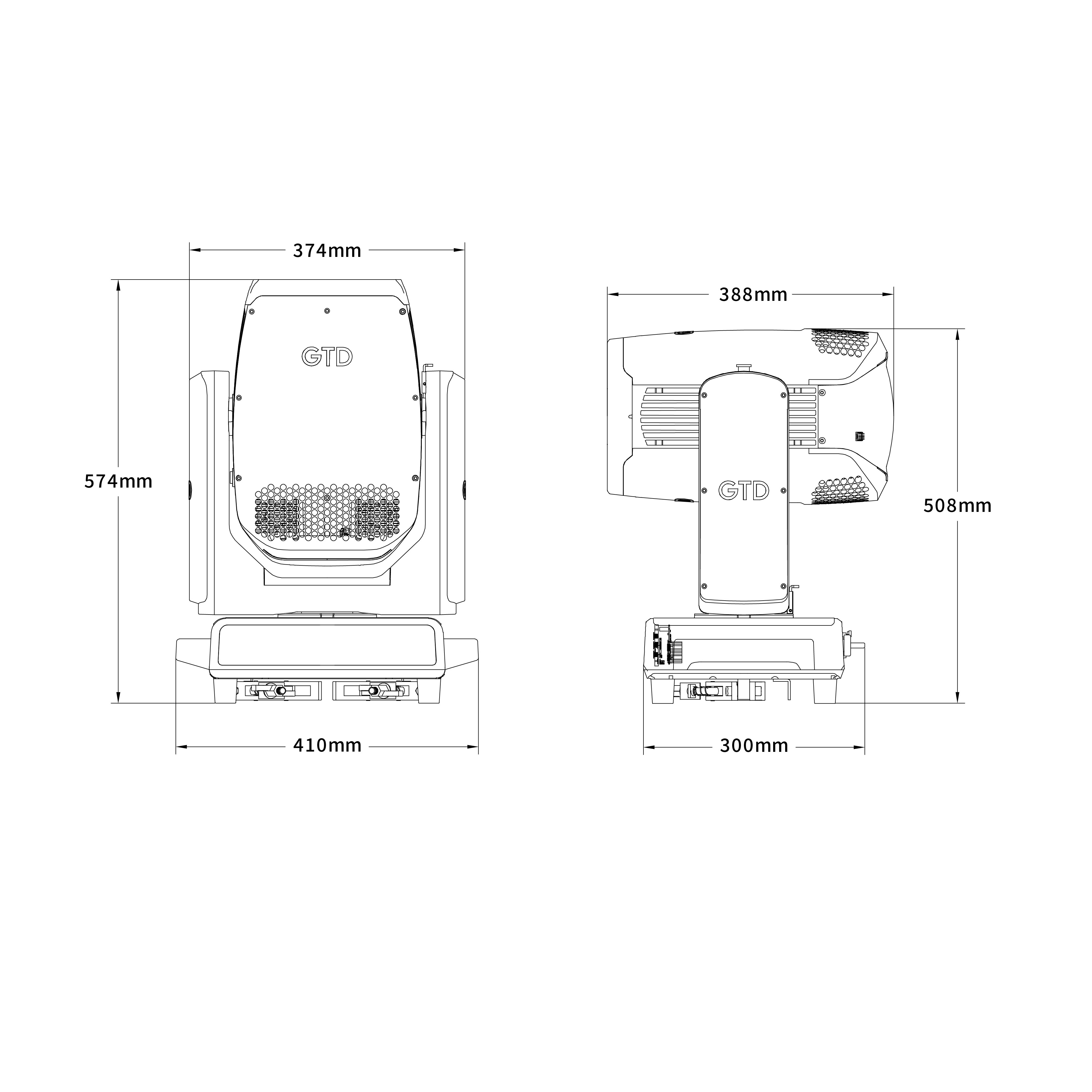

Exterior Dimensions
Accessories
Downloads
Product Video

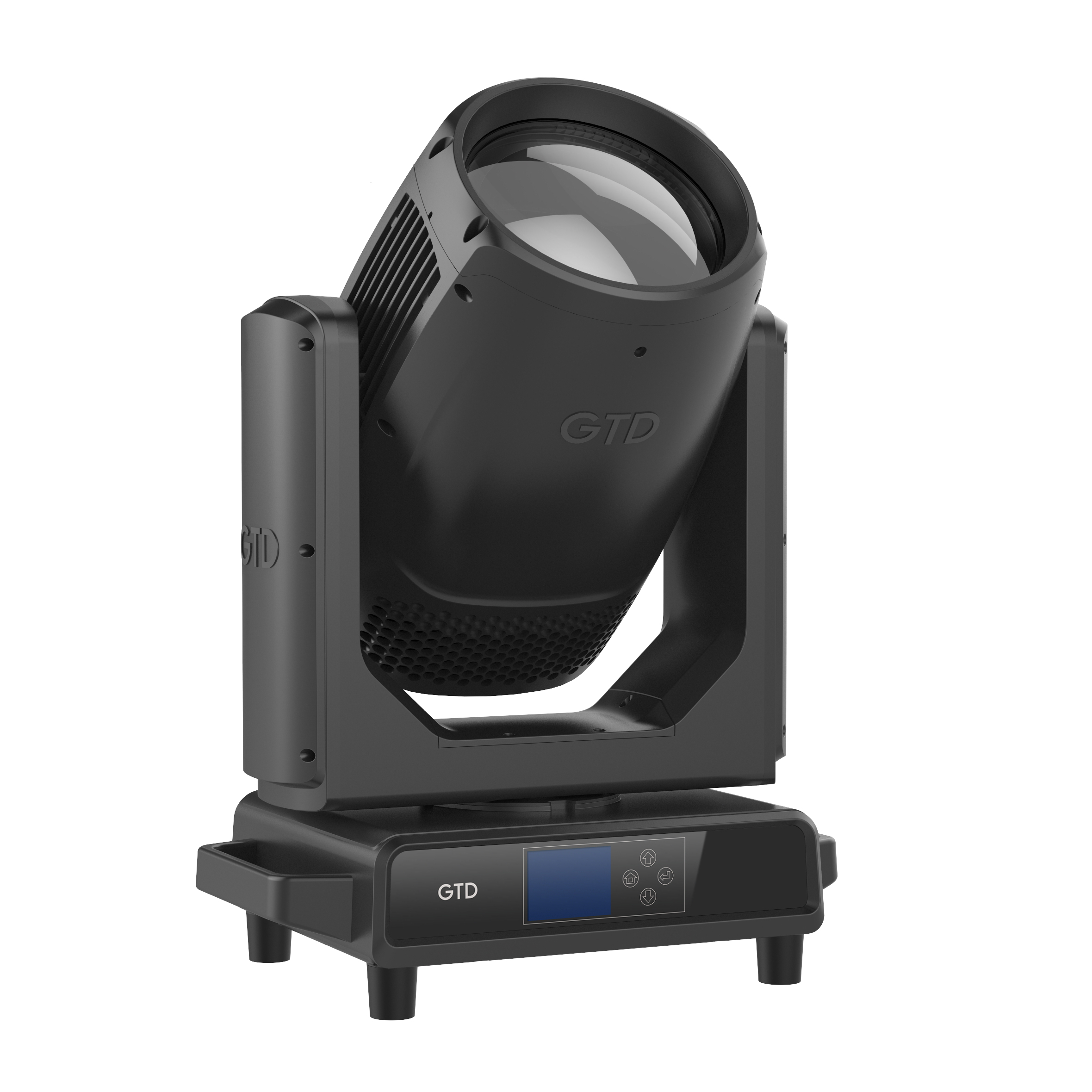

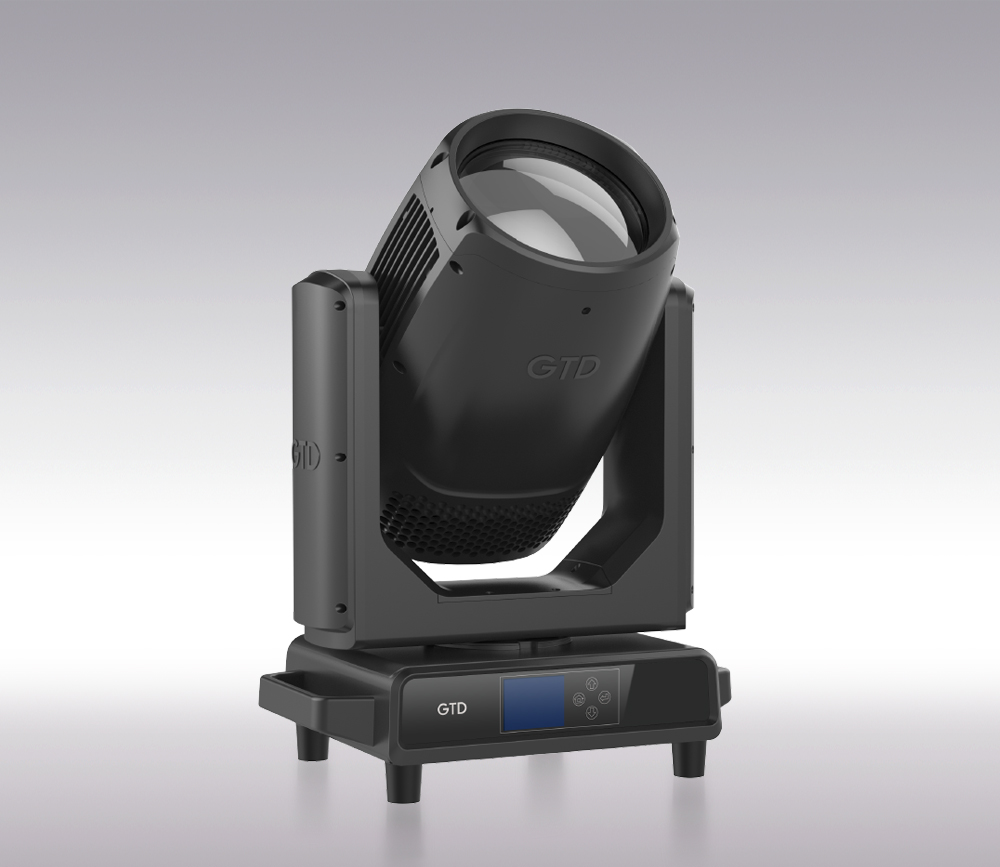

HY-G3
