• Expected average lifetime: 50000 hours

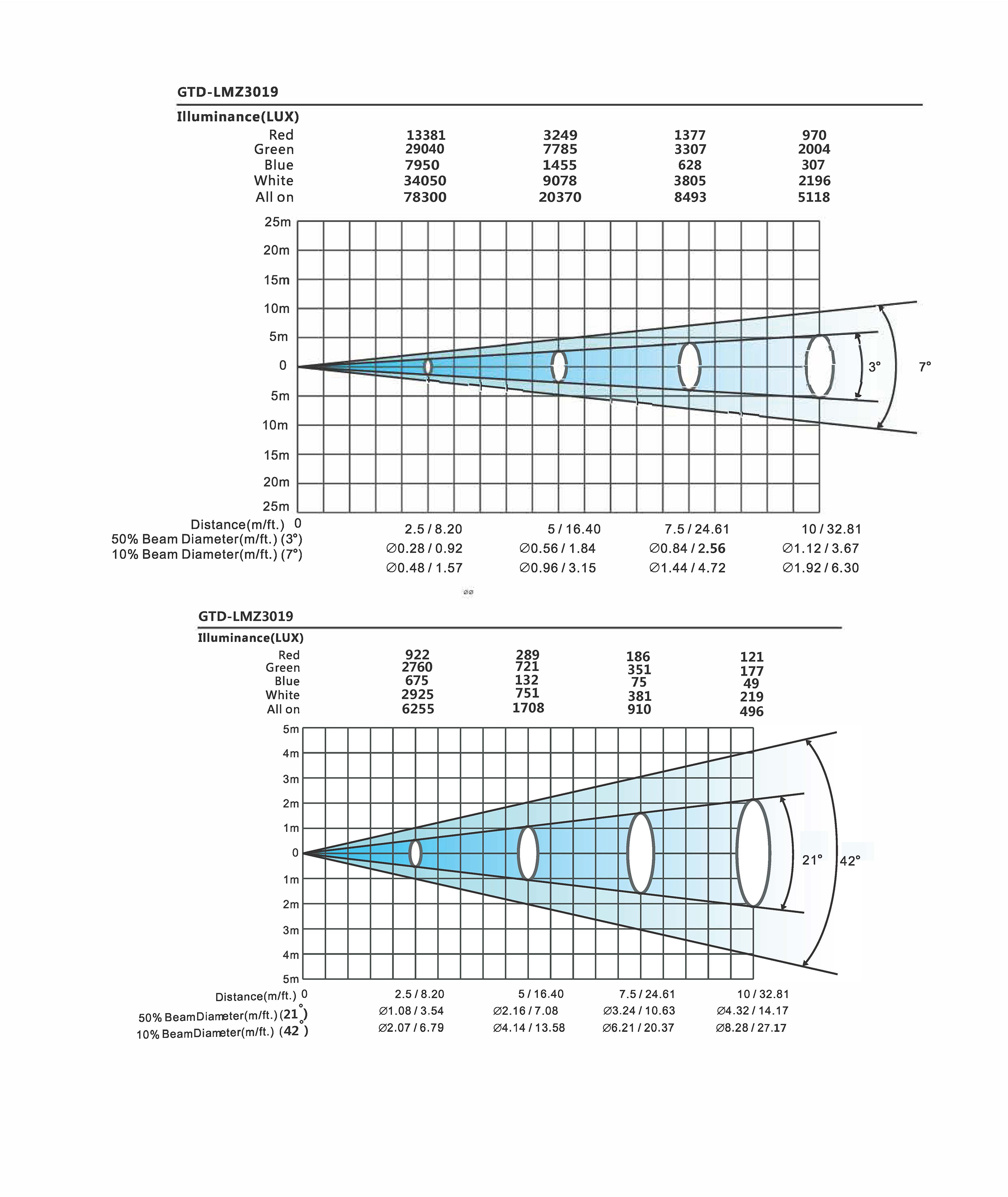

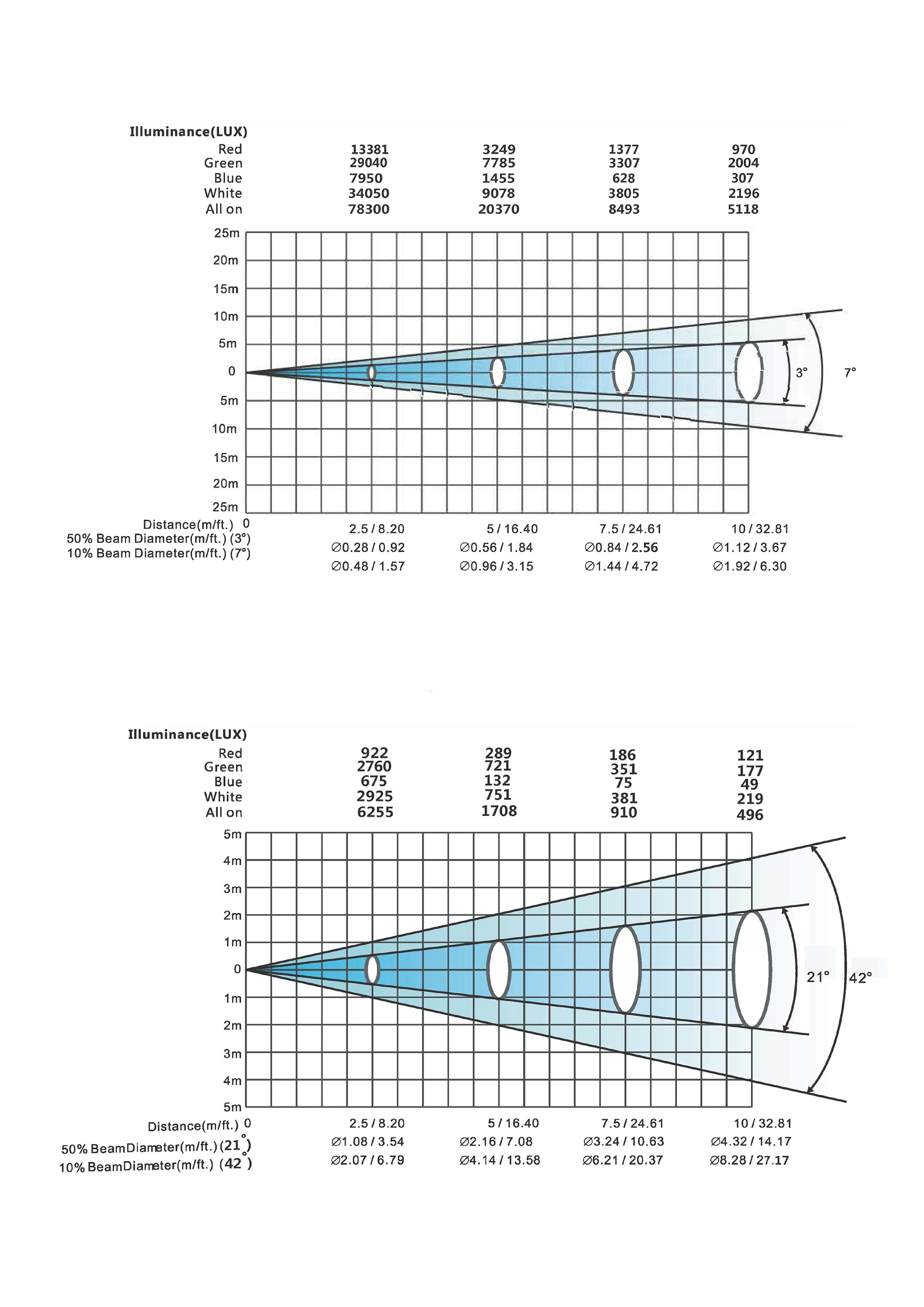

• Beam angle: Zoom range 3° to 21°, 7° to 42°
• Color temperature: 3200K - 6500K linear regulation
• Mixing distance: >2 mtr (6.6 ft.)
ELECTRICAL
• Power input, nominal: AC 200-240V - 50/60Hz
• Max. Power consumption: 500W
• Power supply unit: Auto-ranging electronic SMPS
• Main fuse: 250V/3.3A
CONTROL/PROGRAMMING
• Control channels (DMX): 22/22/38
• Protocol: DMX-512
• Display: Graphic LCD backlit
• 16-bit control: Dimmer, RGBW colors, zoom, pan/tilt
• LED Panel: 3 individual pixels (rings)
DYNAMIC EFFECTS
• Pan/Tilt movement: Pan: 540° , Tilt: 240°
• Strobe: 1-25Hz, synchronized, pulse effects
• Dimmer: 0-100%, 16-bit, electronic linear dimming
• Zoom: Motorized
• Built-in macros: Color
PHYSICAL
• Weight: 7.2 kg (15.9 lbs.)
• IP rating: IP20
• Material: Aluminium, steel, plastic
• Mounting points: Two quarter-turn locking points + attachment points for safety wire
• Minimum distance to combustible materials: 0.5 mtr (1.64 ft.)
• Minimum distance to illuminated surfaces: 1 mtr (3.3 ft.)
