OPTICAL
• Light Source: Cold white1pcs 100W, RGB60pcs 0.3W
• Expected life: 50,000 hours
• Color temperature: 8500K
• Zoom angle: 2°
• Aperture: 120MM
ELECTRICAL
• Input: AC 100V-240V 50/60Hz
• Max Power: 150W

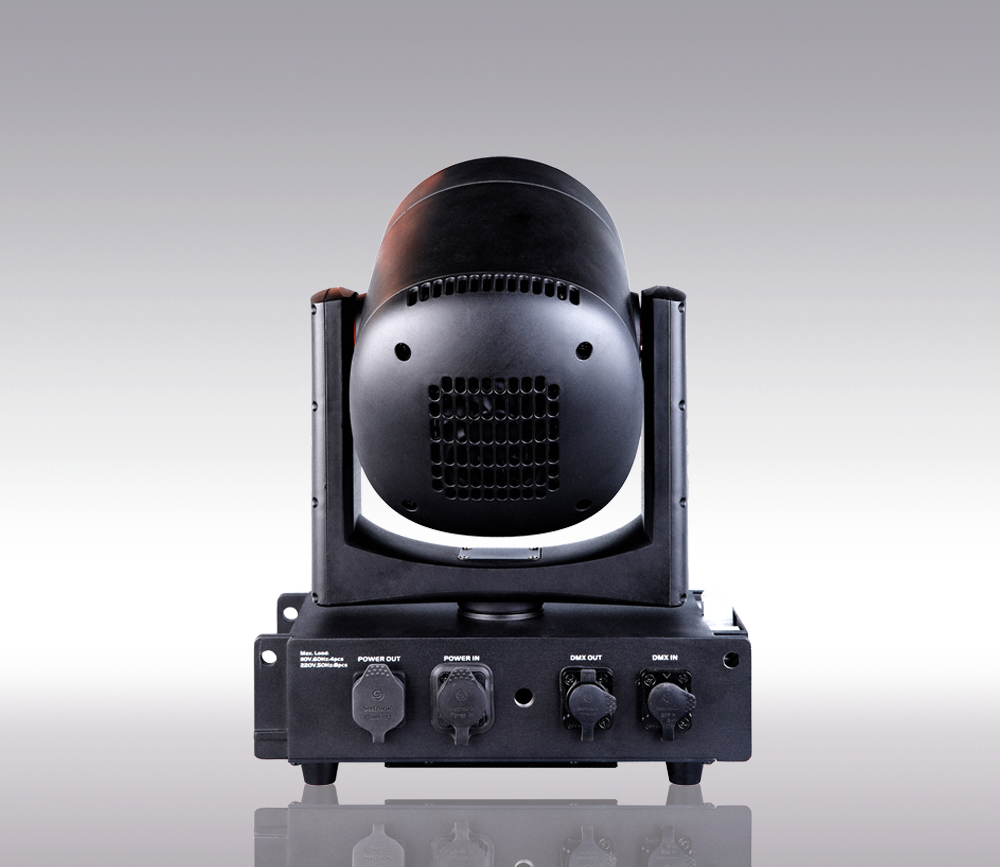

• Signal in/out: IP65 3-pin XLR signal (input/output)
• Power in/out: IP65 power socket (input/output)
CONTROL/PROGRAMMING
• Control channel: 19/22/24
• Protocol: DMX512, RDM
• Display: LCD
DYNAMIC EFFECTS
• Pan/tilt: Pan/tilt stepless rotation, automatic return-to-position correction, and 16-bit precision fine-tuning function
• Strobe: 1-25Hz, synchronized and asynchronous, pulse effects
• Dimmer: 0-100% linear electronic dimming
• Prism: 1 prism wheel with bi-directional rotation
• Atmospheric effects: 60 RGB 3in1 LEDs in a circular shape, with multiple built-in macro effects
PHYSICAL
• Weight: 7.5kg
• IP rating: IP65
• Splicing: The lamp base features a modular design, allowing for unlimited connections
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

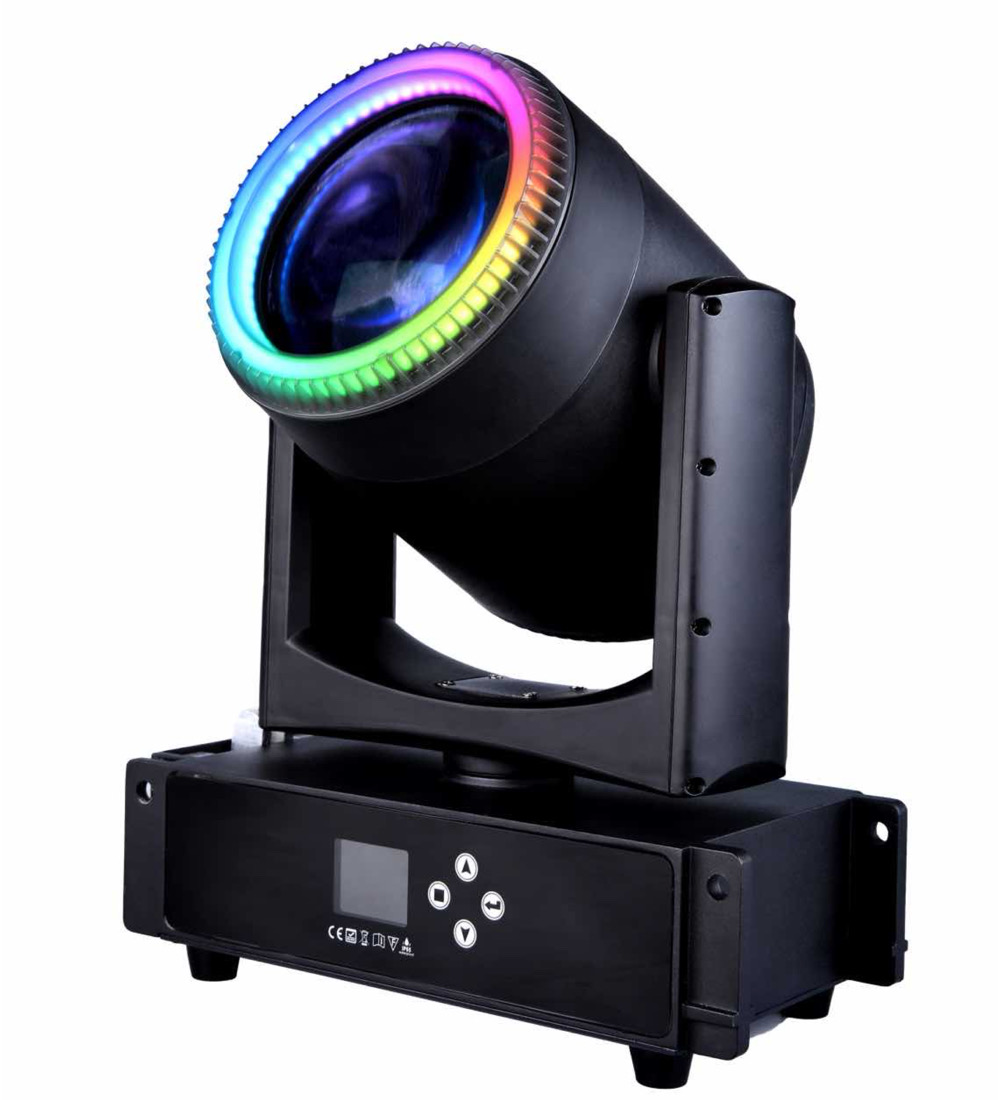

GTD-FX100
